10kw on grid solar power system

FOB Reference Price:Get Latest Price
  • 2 - 9 Sets
    US $4526.00
  • >=10 Sets
    US $4413.00
Customization:
Customized logo (Min. Order: 5 Sets)
Customized packaging (Min. Order: 5 Sets)

More

Graphic customization (Min. Order: 5 Sets) Less
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
SUOYANG
Model Number:
SYBS-10KW
Solar Power (W):
10KW
Specification:
Normal
Application:
Home
Output Voltage (V):
380V/400V/415V
Load Power (W):
3KW/5KW/8KW/9KW
Work Time (h):
6 hours
Solar panel:
Polycrystalline 320W
No. of panels:
34 pcs
PV input power:
10880W
On grid inverter:
10KW, three-phase string type
AC output voltage range:
400Vac±20%
AC output current:
17A
No. of MPP Tracker:
2 routes
AC output frequency:
50Hz/60Hz±5Hz
Max. efficiency:
98%
Protection:
IP65
Supply Ability
Supply Ability:
500 Set/Sets per Month
Packaging & Delivery
Packaging Details
Standard carton packing,2 pcs 340W solar panel in one carton;1 pcs inverter in one carton.
Port
Yantian,Shenzhen
Lead Time :
Quantity(Sets) 1 - 400 >400
Est. Time(day) 25 To be negotiated

10kw on grid solar power system



320w polycrystalline solar panel for solar power system

Dimension: 1956x992x35mm;Weight: 21kg

We have corresponding CE,IEC,Rohs,CQC,TUV certificates and qualification.

Guaranteed power performance:10 years warranty for product,12 years warranty for 90% output power,25 years warranty for 80% output power.

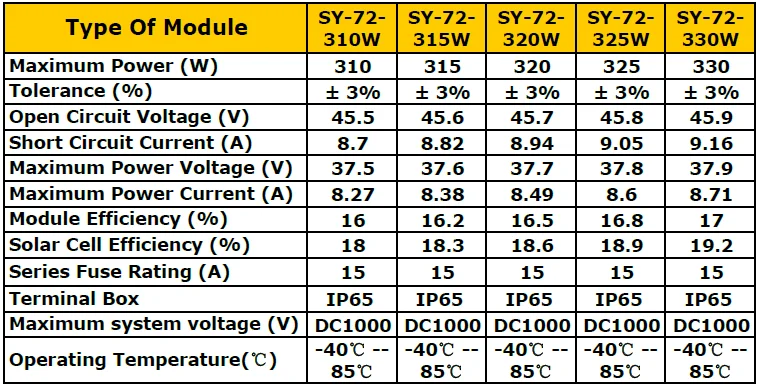

Type Of ModuleSY-72-320WP
Maximum Power (W)320
Tolerance (%)± 3%
Open Circuit Voltage (V)45.7
Short Circuit Current (A)8.94
Maximum Power Voltage (V)37.7
Maximum Power Current (A)8.49
Module Efficiency (%)16.5
Solar Cell Efficiency (%)18.6
Series Fuse Rating (A)15
Terminal Box IP65
Maximum system voltage (V)  DC1000
Operating Temperature(℃)-40℃ - +85℃







10KW on grid inverter for solar power system

Features:

· Transformerless for Topology; Max efficiency up to 98.0%.

· Dual MPPT inputs accommodating wide voltage range; Max. pv voltage up to 1000V.

Flexibility:

· Indoors and outdoors usage (IP65); Easy installation and maintenance-free

· RS485/WIFI/GPRS communication; digital controller.

Reliability:

· Reliable protection for over/under voltage, anti-islanding, shortcircuit, overload, etc.

· 5 years quality warranty.

PV input
Nominal input power: 10KW. Max. DC input power: 11.5KW.
MPP voltage range : 250-1000Vdc. Rated DC voltage: 620Vdc.
DC start voltage: 250Vdc. MPP tracker: 2 routes. Max. input current: 26A.

AC output
Rated AC output power: 10KW. Max. output power: 11.5KW.
Nominal AC voltage: 400Vac. AC voltage range: 400Vac(±20%). AC frequency range: 50/60Hz(±5Hz).

AC connection: 3W+N+PE/3W+PE.
Max. output current: 17A. Topology: Transformer less. Max efficiency: 98%.

General data
Operating temperature: -20℃-+60℃. Cooling type: Natural convection.
Pretection device: All-pole fault current monitoring unit,Ground fault monitoring.
Communication interface: RS485,(WiFi function optional). Protection rating: IP65
Display: LCD. Dimension(L*W*H): 560x715x230mm. Weight: 35KG(Approx.)







Project reference:

Benefits:

On grid solar power system generates electricity from Sunlight and deliver it to the loads in the hourse and feed-in excess electricity to the power grid.It's much cost effective to install and the system will get payback by offsetting utility bills in 3-5 years.It's really useful and universal for home use system.
