330W solar panel for solar power system

FOB Reference Price:Get Latest Price
US $79.2-85.8 / Pieces | 20 Piece/Pieces (Min. Order)
Material:
Polycrystalline Silicon
Max. Power:
330W
Number of Cells:
72 cells
Customization:
Customized logo (Min. Order: 50 Pieces)
Customized packaging (Min. Order: 50 Pieces)

More

Graphic customization (Min. Order: 50 Pieces) Less
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
SUOYANG
Model Number:
SY-72-330WP
Type:
Standard Solar Panel
Size:

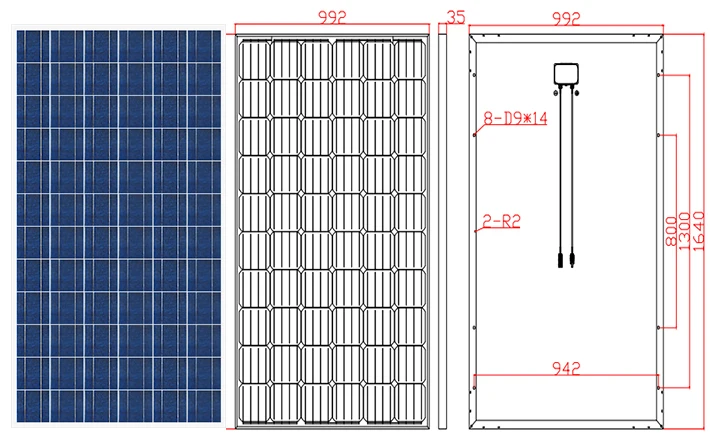

1956*992*35mm
Solar cell:
156x156mm battery cell
Operating current:
8.71A
Operating voltage:
37.9V
Frame color:
Silvery or black
Weight:
21.0kg
Certificates:
TUV,CE,EMC,RoHS,ISO
Terminal Box:
IP65
Application:
330W poly solar panel for solar power system
Product warranty:
10 years
Frame thickness:
35-50mm
Supply Ability
Supply Ability:
12000 Piece/Pieces per Week
Packaging & Delivery
Packaging Details
Standard packing for 330W solar panel solar module.2 pcs in one carton.
Port
Shenzhen
Lead Time :
Quantity(Pieces) 1 - 2000 >2000
Est. Time(day) 15 To be negotiated
Video Description

330W solar panel solar module for solar power system

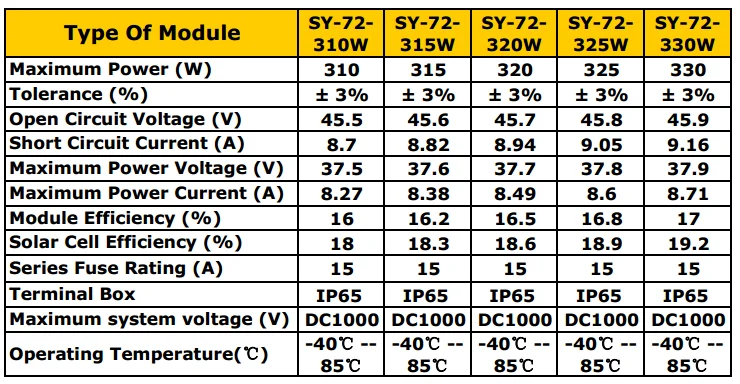

Type Of ModuleSY-72-330WP
Maximum Power (W)330
Tolerance (%)± 3%
Open Circuit Voltage (V)45.9
Short Circuit Current (A)9.16
Maximum Power Voltage (V)37.9
Maximum Power Current (A)8.71
Module Efficiency (%)17
Solar Cell Efficiency (%)19.2
Series Fuse Rating (A)15
Terminal Box IP65
Maximum system voltage (V)  DC1000
Operating Temperature(℃)-40℃ - +85℃



Short circuit current temperature coefficient: +0.06 %/

Open circuit voltage temperature coefficient: -0.34 %/

Power temperature coefficient: -0.47 %/



Guaranteed power performance:10 years warranty for product,12 years warranty for 90% output power,25 years warranty for 80% output power.



Applications:

1.On-grid and off-grid solar power station

2.Commercial/industrial building roof-top solar systems

3.Residential home use roof-top systems,etc.

4.Solar pumping systems.



Reference project:
