280W 290W 300W monocrystalline solar panel with high efficiency

FOB Reference Price:Get Latest Price
US $0.2-0.42 / Pieces | 2 Piece/Pieces (Min. Order)
Customization:
Customized logo (Min. Order: 336 Pieces)
Customized packaging (Min. Order: 336 Pieces)

More

Graphic customization (Min. Order: 336 Pieces) Less
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
SuoYang
Model Number:
SY-280M 290M 300M
Material:
Monocrystalline Silicon
Max. Power:
280W 290W 300W
Number of Cells:
60(6*10)Cells
Size:
1640*992*35mm
Cell grade:
A Grade
Cell dimension:
156*156mm
Weight:
18KGS
Frame:
Anodized Aluminum Alloy
Front Glass:
3.20mm tempered glass
Certification:
TUV CE ISO ROHS CQC
OEM:
Accepatable
Supply Ability
Supply Ability:
1000 Piece/Pieces per Day
Packaging & Delivery
Packaging Details
2pcs/CTN,then in wooden pallet.
Port
ShenZhen
Lead Time :
Quantity(Pieces) 1 - 336 337 - 702 703 - 806 >806
Est. Time(day) 13 14 15 To be negotiated
Video Description



Finished Products

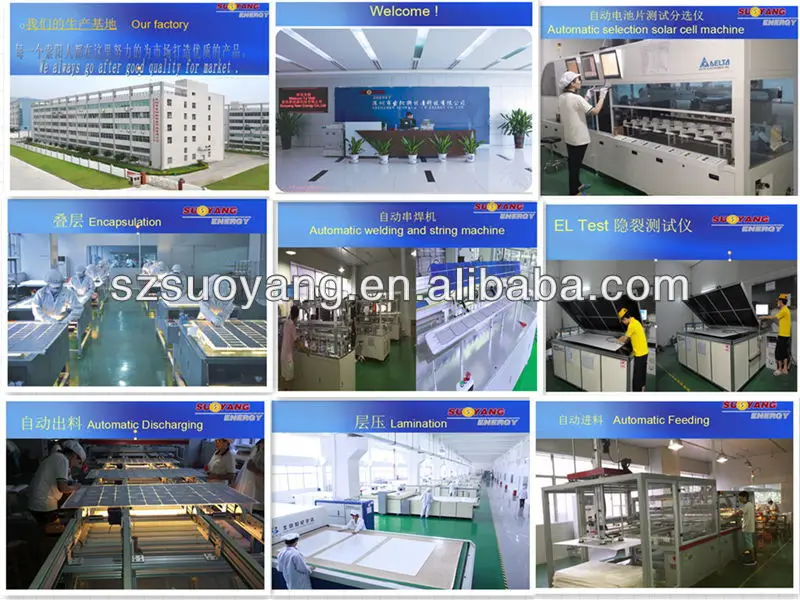

Suoyang Advantage:

1.Over 7 year experience in clean and green energy ,business covering solar panel,  solar street light system ,off grid solar system and on grid solar power system, etc.

2.Advanced technology, professional manufacture, excellent quality and integrated certificate system.

3.Products have been exported to 35 countries and regions all over the world.

                              We supply TUV,CE,ISO,CQC,ROHS ,if you need.

                                         Welcome to visit our factory.



solar panel Features:

1.Grade  A solar cell with Positive tolerance power range.

2. Monocrystalline or Polycrystalline solar cells, range from 5Wp to 300Wp.

3. High efficiency & high stability.

4.Advanced EVA encapsulation system with multi-layer back sheets to better product modules.

5.high frame resistant & Double-sided fluorine TPT.

6.3.20mm tempered frant glass withstands high wind-pressure and snow load.

 7.Anodized aluminum alloy frame.

8.Back: TPT
9.3 or 6 bypass diodes , 90mm 4m2 cable , MC4 connectors & waterproof junction box.

10.Preeminent aesthetic appearance and easy installation.





solar panel Advantages:

 1.High brightness, energy saving, environmental-friendly.

2.Advanced technology, exquisite workmanship, and proprietary design.

3.Easy installation, free maintenance.

4.Strict quality control meeting with the highest international standards.





solar panel Specifications:

Max. power(Pmax):

280w
Optimum  operating voltage(Vmp): 31.7V
Optimum  operating  current(Imp): 8.83A
Open-circuit voltage(Voc): 38.0V
Short-circuit current(Isc): 9.16A
 Size of module: 16409992*35mm
Weigt: 18KGS
Cell efficiency(%): >18%

Output tolerance(%):

±3%

Frame:

Anodized Aluminum Alloy
Front Glass :3.20 tempered glass.
Operatint Temperature:-40° C to +85° C



290W mono 18kgs 31.7vmp(V) 8.83imp(A) 38.2voc(V) 9.16isc(A) 6*10cell

300W mono 18kgs 32.2vmp(V) 9.32imp(A) 38.5voc(V) 9.65isc(A) 6*10cell













Solar panel applications:

 1.Large on and off-grid solar power stations.

 2.Commercial/industrial building roof-top systems.

 3.Residential roof-top systems.

 4.Other industrial and commercial applications.





Warranty:

 1.10 years for product defect.

 2.10 years for 90% of performance.

 3.25 years for 80% of performance.
