Solar Power Panel 60WP for Street Lighting

FOB Reference Price:Get Latest Price
US $0.4-0.7 / Pieces | 1 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
SUOYANG
Model Number:
SY-60M
Material:
Monocrystalline Silicon
Max. Power:
60W
Number of Cells:
36cell
Size:
760*540
Brand:
SUOYANG
certificate:
CE, Rohs,ISO
type:
solar power 60W
Voltage:
12V
Supply Ability
Supply Ability:
10000 Piece/Pieces per Day
Packaging & Delivery
Packaging Details
Neutral packing, 2pcs in one carton, strengthen by pallets
Port
SHENZHEN
Lead Time :
Shipped in 10 days after payment

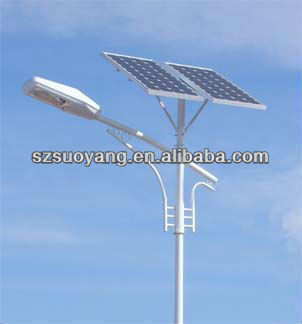

60Wp Solar Power for Solar Street Lighting

  • ITEM NO.: SY-60M
  • Cell Type: Mono-crystalline Silicon Solar cells
  • Maximum power (Wp): 60wp
  • Maximum power voltage (V): 18.2V
  • Maximum power current (A): 3.3A
  • Open circuit voltage (V):22.2V
  • Short circuit current (A): 3.6A
  • Number of cells (Pcs): 4*18 PCS
  • Size of module (mm): 760 x 540 x 35mm (125*125mm cell)
  • Temperature Range: -40°C~+85°C
  • NOVT(Nominal Operating Cell Temperature): 45°C±2°C
  • Voltage temperature coefficient (VOC): -0.38%/°C
  • Current temperature coefficient(ISC): +0.1%/°C
  • Power temperature coefficient (Pmp): -0.47%/°C
  • Maximum system voltage (V): 1000V
  • Surface Maximum Load Capacity: 60m/s(200kg/sq.m)
  • Allowable Hail Load: steel ball dropped from 1 meter
  • Certificates: TUV, ROHS, CE, ISO
  • Output tolerance (%): ±3%
  • Weight per piece (kg): 5.0KG
  • Glass Type: 3.2mm Tempered Glass
  • Junction Box Type: Passed the TUV certified
  • Length of Cables (mm): 750mm
  • Connector Type: MC4
  • Frame (Material, Corners, etc.): Anodized Aluminum Alloy
  • Cell Efficiency (%): ≥17.4%
  • Module Efficiency (%): ≥14.6%
  • FF (%): ≥73%
  • Standard Test Conditions: AM1.5 100mW/cm2 25’C
  • Warranty: 12years for 90% power ,25years for 80% power;
  • Solar lighting

solar lighting panel
