10kva off grid solar system for home use

FOB Reference Price:Get Latest Price
US $7,854-8,161 / Sets | 1 Set/Sets (Min. Order)
Customization:
Customized logo (Min. Order: 10 Sets)
Customized packaging (Min. Order: 10 Sets)

More

Graphic customization (Min. Order: 10 Sets) Less
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
SUOYANG
Model Number:
SYLS-10KW
Specification:
Normal
Application:
Home
Output Voltage (V):
220Vac
Load Power (W):
5KW/6KW/8KW
Solar Power (W):
8910W
Work Time (h):
6 Hours
Solar panel:
Polycrystalline 330W
No. of panels:
27 pcs
PV inverter:
8KW off-grid inverter
Overload capacity:
>125%, 10s
Inverter waveform:
Pure sine wave
Isolation:
Low frequency transformer
Battery voltage:
220Vdc
Battery type:
18 pcs Lead-acid battery
Communication:
RS485
Protection rating:
IP20 indoor use
Supply Ability
Supply Ability:
2000 Set/Sets per Month
Packaging & Delivery
Packaging Details
Standard carton packing,2 pcs 330W solar panel in one carton;1 pcs 8KW off-grid inverter in one carton,1 pcs Lead-acid battery in one carton.
Port
Shenzhen
Lead Time :
Quantity(Sets) 1 - 500 >500
Est. Time(day) 20 To be negotiated

10kva off-grid solar system for home use

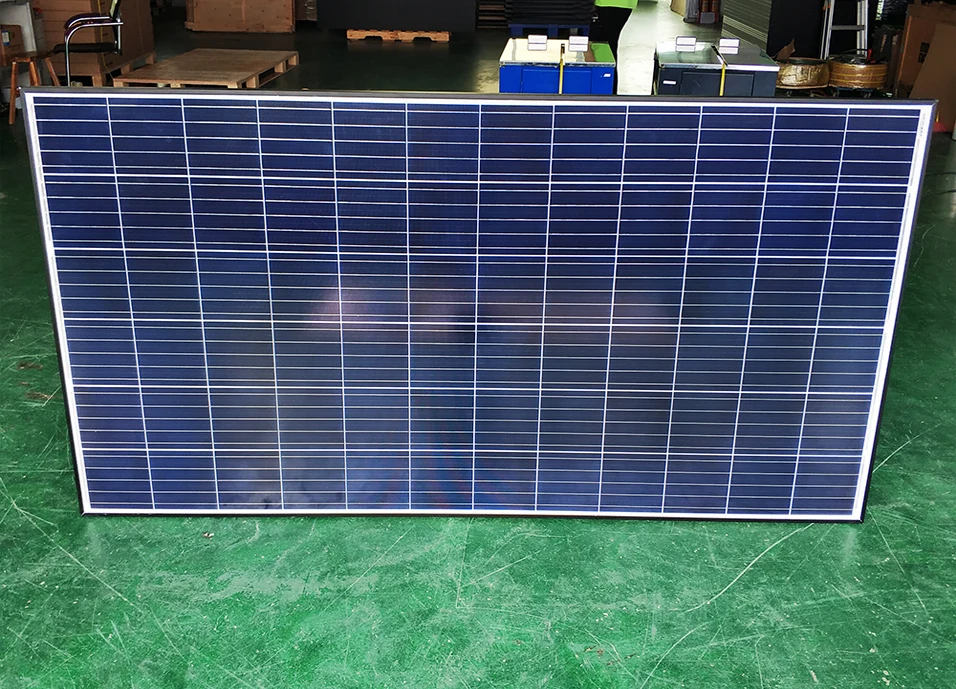

330w Polycrystalline solar panel for solar power system

Dimension: 1956x992x35mm;Weight: 21kg

We have corresponding CE,IEC,Rohs,CQC,TUV certificates and qualification.

Guaranteed power performance:10 years warranty for product,12 years warranty for 90% output power,25 years warranty for 80% output power.

320w solar panel poly1.jpg



8.0KW off-grid PV inverter

PV input: MPP voltage range: 250-450Vdc.  AC input voltage range:220Vac(±20%). Frequency range: 50Hz(±5%) Max. AC charge current: 10A.
Max. MPPT efficiency: 98.0%. Max. input power: 11KW.
Off-grid Inverter output
Rated AC output power: 10KVA/8KW. Output voltage: 240Vac,L+N+PE.
Overload capacity: 105%~110%, 10mins; 110%~125%, 1min; >125%, 10s.
Waveform: Pure sine wave. Isolation: Low frequency transformer.
MPPT PV control module
Output voltage range: 192V-264Vdc. Max. output current: 50A.
Battery type: Lead-acid battery. Rated voltage: 220Vdc. 3-step charging algorithm.
General data
Operating temperature: -20℃-+50℃(Over 50℃,derating)
Display: LCD+LED. Communication: RS485,(Dry contact). Protection rating: IP20
Dimension(L*W*H): 610x460x1125mm. Weight: 100KG(Approx.)





Lead acid battery

Capacity: 12V 120AH. Lead-acid battery,deep cycle solar type.
Dimension(L*W*H): 406x173x215mm. Weight: 34.6KG(Approx.)

12V200AH battery.jpg



Benefits:

Off-grid solar power system generates electricity from Sunlight and delivers it to the loads in the house and charges battery pack in the day.And battery pack converts electricity to the loads.When solar power and battery power are down,the off-grid inverter can work with Grid power or a generator.

It's much cost effective to install and usually the system will get payback by saving utility bills in 3-5 years.It's really useful and universal for home/commercial/industrial use.The off-grid system is becoming more and more popular in districts where Solar energy is good,Or Grid electricity is poor or none,Or Grid electricity cost high.
